| MOQ: | 1 Piece |
| Price: | USD43 |
| Delivery Period: | 20-25 days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 5000/month |

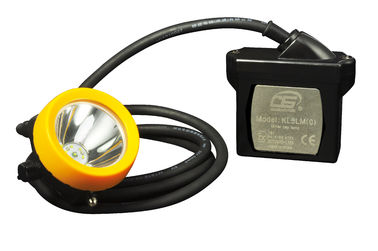

1.6M cable Industrial Lighting Fixture , mining cap lamps led 15000 Lux
Attibute value:
| No. | item | parameter | unit | remark | |
| 1 | Rating voltage | 3.7 | V | ||
| 2 | Rating capability | 6.5 | Ah | ||
| 3 | Lighting duration(main lamp-house) | ≥15 | H | The real duration is more | |
| 4 | intensity of illumination(main lamp-house) | beginning | ≥10000 | Lux | 1 meter from the lamp |
| After 11 hours | ≥10000 | ||||
| 5 | LED average current | main lamp-house | 400 | MA | |
| secondary lamp-house | 110 | ||||
| 6 | Charge protective voltage | 4.2 | V | ||
| 7 | Discharge protective voltage | 3.0 | V | ||
| 8 | Charging time | 5 | H | ||
| 9 | Battery circular life | >1000 | Circle | Circular times | |
| 10 | Weight | 0.55 | kg | Include the battery | |
| 11 | Battery case Dimension | 97x97x40 | mm | Outer maximum dimension | |
1 Product Discription:
KL5LM(C) is the brightest cord cap lamp with low power indication. it adopts the Li-ion battery technology and advanced LED technology with special designed reflector, and MCU control charging system charger.
(1) Super bright
The main light LED of KL5LM(C) is American CREE LED, which can gives more than 150 lumens output, and the lighting degree is 10,000 to 15,000 lux at full lighting time (tested with 1 meter away from the lamp head) .The full charged KL5LM(C) will provide more than 15 hours continuous lighting.
(2) MCU charging system
The charger with aluminum alloy housing and MCU control system to charge the battery much more quickly and safely, and with precondition charging system to protect the battery when the battery voltage is too low.
(3) Short-circuit protection
Contained in a sealed battery case, the product has a short-circuit protection, LED light head lamp and anti-static housing which makes it explosion proof, waterproof and dust-proof. The miner's lamp is ATEX Certified for use in explosive atmospheres such as coal mines.
(4) Over-charge and over-discharge protection system
The durable Li-ion battery has an over-charge and over-discharge protection system to protect the battery from over charge or over discharge. And the charger has precondition charging to prevent the battery damaged with high current when the battery voltage is too low. The cap lamp is suitable for operation under harsh mining conditions.
(5) Portability
Small in size, light in weight, ergonomically designed, maintenance free, simple charging, easy operation. The cap lamp has received praise from many miners and major mining companies.
(6) Environmental
The cap lamp is made from environmentally friendly Li-ion battery and other non hazardous materials. The KL5LM(C) is an environmentally friendly product as per ROHS Directive.
2 Product Details
3 Usage Guide
3.1 Charger
b. Put the head lamp into the plug of the charger; turn 180 degrees in clockwise to make the anode firmly. Now the charger indicator light will be in red color, means it is under charging.
c. During the charging time, the charger indicator light will turn red, when the lamp is full charged , it’ll turn green.
d. After charging. turn the head lamp 180 degrees to the left; remove from the charger.The charging time is about 5 hours.
Golden Future KL5LM(C) Part Drawing
3.2 Switch
1. The KL5LM(C) switch is mechanical twist switch. It works in the following way
Twist the switch to left (main light on) Middle(off ) Twist the switch to right(aux light on)
4 Certification
|
|
