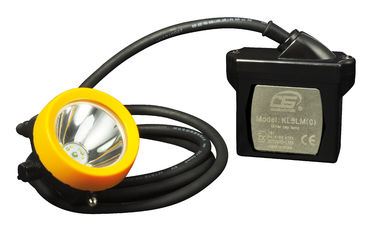

Exploration cord head light Industrial Lighting Fixture with low power indicator

Exploration cord head light Industrial Lighting Fixture with low power indicator

MOQ: 1 Piece
Price: USD43
Delivery Period: 20-25 days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 5000/month
Detail Information
Place of Origin
China
Brand Name
Golden Future Ltd
Certification
CE ATEX
Model Number
KL5C
Power:
1W
Illuminance:
15000 Lux
High Bright Lasting Time:
15H
Output Voltage:
3.7V
Charge Protective Voltage:
4.2V
Discharge Protective Voltage:
3V
Minimum Order Quantity:
1 Piece
Price:
USD43
Delivery Time:
20-25 days
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
5000/month
High Light:

rechargeable miners headlamp

,

led mining lamp

Product Description

Exploration cord head light Industrial Lighting Fixture with low power indicator



Attibute value:



No. item parameter unit remark
1 Rating voltage 3.7 V
2 Rating capability 6.5 Ah
3 Lighting duration(main lamp-house) ≥15 H The real duration is more
4 intensity of illumination(main lamp-house) beginning ≥10000 Lux 1 meter from the lamp
After 11 hours ≥10000
5 LED average current main lamp-house 400 MA
secondary lamp-house 110
6 Charge protective voltage 4.2 V
7 Discharge protective voltage 3.0 V
8 Charging time 5 H
9 Battery circular life >1000 Circle Circular times
10 Weight 0.55 kg Include the battery
11 Battery case Dimension 97x97x40 mm Outer maximum dimension



1 Product Discription:



KL5LM(C) is the brightest cord cap lamp with low power indication. it adopts the Li-ion battery technology and advanced LED technology with special designed reflector, and MCU control charging system charger.



(1) Super bright

The main light LED of KL5LM(C) is American CREE LED, which can gives more than 150 lumens output, and the lighting degree is 10,000 to 15,000 lux at full lighting time (tested with 1 meter away from the lamp head) .The full charged KL5LM(C) will provide more than 15 hours continuous lighting.



(2) MCU charging system

The charger with aluminum alloy housing and MCU control system to charge the battery much more quickly and safely, and with precondition charging system to protect the battery when the battery voltage is too low.



(3) Short-circuit protection

Contained in a sealed battery case, the product has a short-circuit protection, LED light head lamp and anti-static housing which makes it explosion proof, waterproof and dust-proof. The miner's lamp is ATEX Certified for use in explosive atmospheres such as coal mines.



(4) Over-charge and over-discharge protection system

The durable Li-ion battery has an over-charge and over-discharge protection system to protect the battery from over charge or over discharge. And the charger has precondition charging to prevent the battery damaged with high current when the battery voltage is too low. The cap lamp is suitable for operation under harsh mining conditions.



(5) Portability

Small in size, light in weight, ergonomically designed, maintenance free, simple charging, easy operation. The cap lamp has received praise from many miners and major mining companies.



(6) Environmental

The cap lamp is made from environmentally friendly Li-ion battery and other non hazardous materials. The KL5LM(C) is an environmentally friendly product as per ROHS Directive.





2 Product Details

Exploration cord head light Industrial Lighting Fixture with low power indicator 0







Exploration cord head light Industrial Lighting Fixture with low power indicator 1

3 Usage Guide





3.1 Charger



  • Please connect with power then start charging, the charger indicator light will turn green when it is connect with the power.

                                       Exploration cord head light Industrial Lighting Fixture with low power indicator 2



b. Put the head lamp into the plug of the charger; turn 180 degrees in clockwise to make the anode firmly. Now the charger indicator light will be in red color, means it is under charging.



Exploration cord head light Industrial Lighting Fixture with low power indicator 3

c. During the charging time, the charger indicator light will turn red, when the lamp is full charged , it’ll turn green.

d. After charging. turn the head lamp 180 degrees to the left; remove from the charger.The charging time is about 5 hours.



Exploration cord head light Industrial Lighting Fixture with low power indicator 4





Golden Future KL5LM(C) Part Drawing



                                              Exploration cord head light Industrial Lighting Fixture with low power indicator 5

  1. Front cap
  2. Lens/glass
  3. Silicon gasket ring
  4. LED board and reflector
  5. Rear housing
  6. Stainless steel fastener
  7. Wire
  8. Plastic fastener
  9. Sheet
  10. Sleeve
  11. Cap for battery
  12. Screw
  13. Plastic fastener 2
  14. Screw STS.0.8 mm
  15. Gasket ring
  16. Plastic sheet for battery
  17. Battery
  18. Battery box
  19. Metal plate





3.2 Switch



1. The KL5LM(C) switch is mechanical twist switch. It works in the following way





Twist the switch to left (main light on)   Middle(off )  Twist the switch to right(aux light on)





4 Certification

Exploration cord head light Industrial Lighting Fixture with low power indicator 6
