MOQ: | 50 |
Price: | negotiation |
Standard Packaging: | 20pc /carton |
Delivery Period: | 20-30days depends on your amount |
Payment Method: | T/T in advance, or 30% deposit, balance T/T based on copy of B/L for sea shipment |
Supply Capacity: | 100 lamps for industry lamps, and 100,000 lamps for commercial lightings |

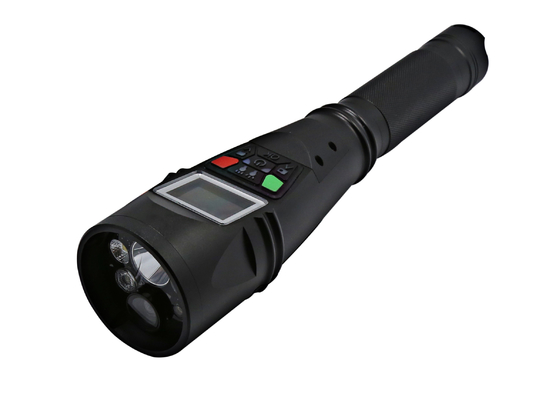

DFC-14 DVR flashlight to get evidence for railway/fast train inspection
DFC-14 DVR flashlight suits for Police patrol, firefighting, exploration, electricity service, electrified wire setting, petroleum and Petrochemical Industry, railway department and traveling, and etc. It not only can be used as a flashlight, but also can take photos, video and audio in real time in different occasion. It has red/green signal light for train or traffic guidance. The video and audio can be remote transmitted in real time by the built-in WIFI. Also the user's location can be recorded in real-time by the built-in GPS.
1. DFC-14 Features
Security: DFC-14 DVR flashlight has the protection of over-charge, over-discharge and short circuit; With intelligent charger to extend the battery life. The battery pack is protected by plastic housing for dropping resistance.
Environmental Friendly: DFC-14 adopts the latest CREE LED and excellent optical design, which makes the light strong and soft. It has long illumination distance in night, long life span and free maintenance. High energy rechargeable battery, with low self-discharge rate and without memory, can be recharged many times.
Lighting performance: Spot light and flood light can be changed freely, making long distance lighting and broad lighting possible.
Photographed Function: Imaging sensor installed inside of lamp to take photograph or video. Also, image resolution can be set freely, it can take photograph or video under illumination, even in particular environment.
High speed photography: Dynamic shooting can reach to 60 frames per second, which assures video stable and clear.
LCD screen: 1.5 inch Special designed LCD screen can show the menu set function and work accordingly when recording or photographing. It also can overview the recorded video and photos, no need to connect computer. All operations are convenient and swift.
Practical function: DFC-14 DVR Flashlight has light weight and little size, it can be took in hand or slung across body with belt to meet various working requirement.
Environment temperature:-10 ℃ ~ +40 ℃
Relative humidity:15 ~ 85%RH.
3. Main technical parameters
Items | Unit | Value | |
Rated Voltage | V | 3.7 | |
Rated Capacity | Ah | 6.6 Ah 18650 lithium battery (with protective PCB and protective shell) | |
Display | inch | 1.5 inch LCD high-definition screen, can watch the real-time video and playback the recorder | |
LED Source | Rated power | W | 1 |
lifespan | h | 100,000 | |
CCT | K | 5500 | |
Signal Lamp | Red | W | 1 |
Green | W | 1 | |
Continuous Working Hours (spot light) | h | ≥18 | |
Charging Time ( charger rack) | ≤6 | ||
Video Hours | Light on | ≥ 7(Sustainable time of electricity consumption) | |
Light off | ≥ 15 | ||
WIFI | Built-in WIFI to connect mobile phone or IPAD | ||
GPS | GPS location tracking can be showed in video file | ||
visual Angle | degree | 87 | |
Camera pixel | M | 16 | |
Camera resolution | 5344*3006(1600W)/4800*2700(1200W)/2688*1512(500W) option | ||
Video Resolution | 2304*1296P/1920*1080P/1280*720P/ 848*480P option | ||
High speed filming | 1280×720 60 frames | ||
Memory card | G | 32 / 64 | |
Video file size | MB/minute | 25~60 | |
Video laser positioning | Laser light turn on automatically to show the video center when taking video | ||
Video format | MP4 | ||
Battery life | cycle | About 500 | |
Size / Weight | mm / g | Φ63×250 / 550 | |
IP rated | IP65 |
4.Operating Instructions
Power button: Pressing power button for 2s, flashlight start up; pressing 2s again, flashlight shutdown.
when the flashlight start on, you need to choose the letters on the keypad which is shown on the display to set the equipment number (or serial number) for the flashlight, you also can choose the enter key () directly and press 'OK' to skip the equipment number setting and go into the camera mode.(Refer picture below)
Red light:Red signal control button, press to turn on / off.
Green light: Green signal control button, press to turn on / off.
Light: Light control button switches spotlight and floodlight. Spot light for long distance illumination, floodlight for large range illumination and taking video in Night time. (All lights above have interlock function, only one light can be open at the same time.)
Product show:
