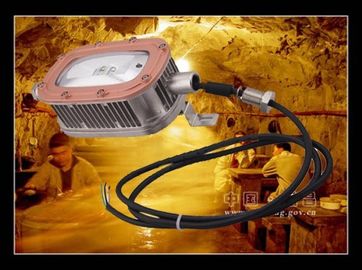

IP67 Stainless Steel Mining Safety tunnel light
The DMT-30 LED mining safety tunnel light is specially designed for tunnel illumination of underground mines, industry plant and offshore oil plant, which has potential explosive atmospheres or combustible dust, sulfide or salt in the air.
|Total power consumption:||33watt|
|Input voltage:||AC85-265V, or DC24-36V|
|Power factor (λ):||>0.9|
|High power LED brand:||CREE|
|Output lumens:||3000 lumens|
|Corrosion proof grade:||WF2|
|Explosion protection classification:||EXD I, EXD IIB T5|
|Equipment category:||MI, MII|
|Area classifications (gases):||Zone 1 and 2|
|Gas Group:||IIA, IIB,|
|Area classification (dusts):||Zone 21 and 22|
|Dimension:||24 * 12 * 8.9cm|
Absolutely corrosion proof, explosion proof, it is a very good item for coal mine, metal mine and offshore oil plant;
Reducing energy by 7 times, the energy you saved for one year using is enough to buy the lamp, very long lifetime, and no maintenance cost.
stainless steel with nickel plated, absolutely corrosion proof
bulletproof PC lens with antistatic oil painted, which can support more than 20J impact, no need metal mesh as normal light
6pcs American CREE XM LED, total power 30 watt,
initial output lumens is 3000 lumens.
Life time: more than 50,000 hours
CRI: 78, color temperature: 6500K
Patented reflectors enable the lamp to illuminate the underground passage uniformly, 160 degree beam angle in longituginal plane, and 120 degree in transverse plane
Input: AC85-265V, 50/60HZ, or DC24-36V, no critical to voltage drops.
Total power consumption is only 33watt, .reducing energy consumption by 7 times.
Long life span, and no maintenance cost, absolutely corrosion proof, explosion proof, dust proof and water proof.
water proof: IP67
Corrosion proof: WF2
EXD 1 for MI,
EXD IIB T5 for MII, Zone 1 and 2, Zone 21 and 22
ATEX (In process)
FM (in process)
