ATEX DL618 Led Linear Oil Platform Lighting Replacement Traditional Explosion Proof Light

ATEX DL618 Led Linear Oil Platform Lighting Replacement Traditional Explosion Proof Light

MOQ: negotiation
Price: negotiation
Standard Packaging: 1pc /carton
Delivery Period: 20-30days depends on your amount
Payment Method: T/T, Western Union, Paypal
Supply Capacity: 5000pc/month
Detail Information
Place of Origin
Shenzhen China
Brand Name
Golden Future
Certification
Ex d ⅡB+H2 T5 Gb / Ex tD 21 T95℃
Model Number
DL618 40W
Housing:
Aluminium Alloy
Input Voltage(v):
AC110-240V
Lamp Power(w):
40
Ip Rating:
IP66
Working Lifetime(hour):
50000
Working Temperature(℃):
-20°C ~ +50°C
Minimum Order Quantity:
negotiation
Price:
negotiation
Packaging Details:
1pc /carton
Delivery Time:
20-30days depends on your amount
Payment Terms:
T/T, Western Union, Paypal
Supply Ability:
5000pc/month
High Light:

Led Linear Oil Platform Lighting

,

Aluminium Alloy Oil Platform Lighting

,

IP66 Oil Platform Lighting

Product Description

ATEX DL618 40W led linear Oil platform lighting - Replacement of traditional explosion proof light



40w explosion proof lamp is special designed to replace traditional fluorescent tube

DL618 LED Explosion Proof lamp is applicable for zone I and zone II , or gas area, restricted area or heavy industrial processing equipment area, drilling platform and other coastal or offshore dangerous areas, Such as port, ship, oil, petrochemical, oil depot, and it’s designed and manufactured according to requirements of EN60079-0: 2009, EN60079-1: 2007, EN60079-31: 2009, IEC60079-0: 2007, IEC60079-1: 2007, IEC60079 31: 2008. The Ex marking is :Ex d ⅡB+H2 T5 Gb / Ex tD 21 T95℃



This explosion proof lamp is special designed to replace traditional fluorescent tube.It has longer lifetime,don't need to replace tube. It can not only save energy,but also save a lot of maintenance costs.More economic and environmental .

Brief information:

1.product model:DL618

2.power:40w

3. Initial Luminous Flux: 5400 lumens

4.housing material:die-cast alluminium alloy with toughened glass

5.lifetime:>50000h

6.Ex mark: Ex d II B + H2 T5 Gb

7.light source:cree LED

8. warranty:5year



Technical parameter

Items Unit Value

Light

Source

LED CREE XT-E
Luminous Flux 5400 lumens
Color Temperature 5700-6000K
Color Rendering Index Ra>80
power 40 watt
Input Voltage AC 110-240V
Housing Material Die cast aluminum housing with tempered glass
Dimension ø117X151 X910mm
Weight 8 kg
Working Temperature -20°C ~ +50°C
Beam angle 160°
Corrosion protection Classification WF2
IP Classification IP66
EX Mark Ex d ⅡB+H2 T5 Gb / Ex tD 21 T95℃
Total harmonic current <15%
Factor >0.95



Please access the cable with power, pay attention to lamps to safety ground , and operate the light in right way.

Dimension and Package (unit: mm):



1) DL618 dimension: 910*151*117(figure 1)

2) Package size: 1030*270*260


ATEX DL618 Led Linear Oil Platform Lighting Replacement Traditional Explosion Proof Light 0

Application Area:



DL618 series LED Explosion Proof Floodlight is applicable for zone I and zone II , or gas area,restricted area or heavy industrial processing equipment area, drilling platform and other coastal or offshore dangerous areas, Such as port, ship, oil, petrochemical, oil depot.





ATEX DL618 Led Linear Oil Platform Lighting Replacement Traditional Explosion Proof Light 1ATEX DL618 Led Linear Oil Platform Lighting Replacement Traditional Explosion Proof Light 2

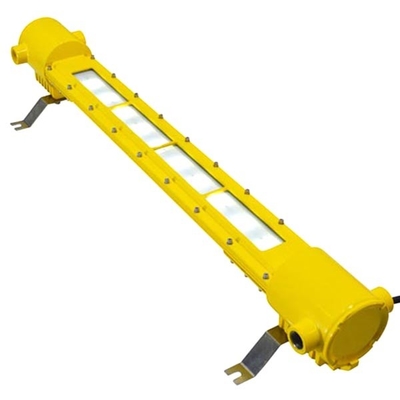

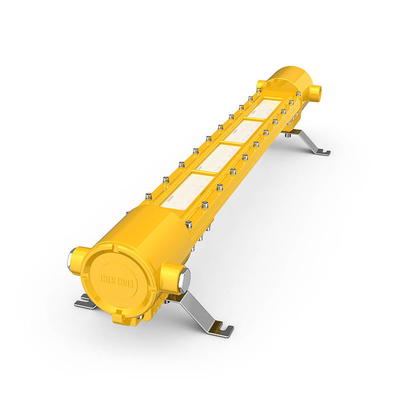

Product show:

ATEX DL618 Led Linear Oil Platform Lighting Replacement Traditional Explosion Proof Light 3

ATEX DL618 Led Linear Oil Platform Lighting Replacement Traditional Explosion Proof Light 4

ATEX DL618 Led Linear Oil Platform Lighting Replacement Traditional Explosion Proof Light 5

ATEX DL618 Led Linear Oil Platform Lighting Replacement Traditional Explosion Proof Light 6
