| Feature: | Low Power Indication | Ex Mark: | IM1 Ex Ia I Ma |
|---|---|---|---|
| IP Grade: | IP68 | Warranty Time: | 1 |
| Lighting Time: | >17 Hours | Keyword: | Miners Cap Lamp |
| High Light: | 15000Lux Led Miner Lamp,Low Power Indication Led Miner Lamp,Exia IIB T4 Led Miners Cap Lamp |
||

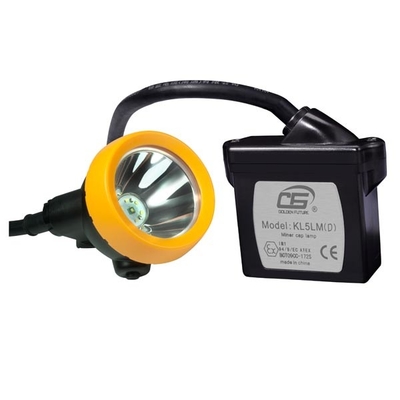

15000Lux Coal Miner LED Mining Cap Lamp With Low Power Indication
Applications of KL5LM(D) portable rechargeable underground led coal mining cap lamp/mining light with low power indication
It is suitable for mineral industry, tunnel projects, construction and maintenance for power, communication, highway, railway at night, night lamp for cutting off rubber plant and absorbing mucus and for lighting a flood, rescuing and marine use
Technical parameters:
| Parameters | Unit | Values | |
|
Light source |
LED power | W | 3 |
| Lighting degree | Lux | 15,000 | |
| Lifespan | h | 100,000 | |
|
Battery
|
Rated capacity | mAh | 7800 |
| Rated voltage | V | 3.7 | |
| Charging time | h | ≤8 | |
| Lifespan | circle | 1000 | |
|
Charger
|
Input voltage | V | AC100～240 |
| Output voltage | V | DC 4.2 | |
| Output current | A | 1.5 | |
| Continuous working time | h | >15 hours | |
| Net Weight | g | 550 | |
| Ex-mark | I M1 Ex ia I Ma | ||
| IP grade | IP68 | ||
| Warranty | 1 year | ||
Advantage of KL5LM(D) /KL5LM(D2)portable rechargeable underground led coal mining cap lamp/mining light with low power indication
1.High lighting degree: main light is more than 15000lux in full lighting time
2.Low power indication: remind the user to recharge it when the power is not enough for one hour
3.KL5LM(D2) Safety rear light with blue flashing can let vehicles around make it easy to see worker and reduce accident
4.Long working time : continuous lighting time is more than 15 hours with 7.8Ah Li-ion battery(LG brand)
5. The charger with aluminum alloy housing and MCU control system to charge the battery much more quickly and safely, and with precondition charging to protect the battery when the battery voltage is too low.
6. Li-ion battery has an over-charge and over-discharge protection system to protect the battery from over charge or over discharge.
Packing information:
20sets/carton, GW: 20KG, carton size:46*36*36cm
Product show:
