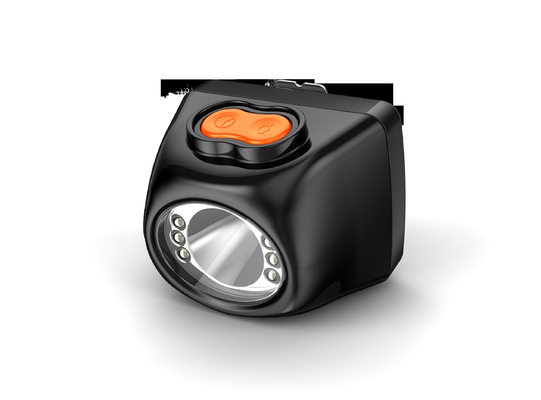

Nice digital cordless portable KL4.5LM miner cap lamp with charger
technical parameters:
| Features | Value | Unit | |
| Light source | LED Power | 1 | W |
| Luminous flux | >140 | Lm | |
| Life time | >100,000 | hour | |
|
Li-ion battery
|
Rated capability | 5.2 | Ah |
| Rated voltage | 3.7 | V | |
| Continuous working time | >15 | hour | |
| Charging time | <6 | hour | |
| Life time | 1000 | circle | |
| Charing voltage and current | 4.9V@1A | ||
| lamp lighting degree (distance 1 meter) | >7000 | Lux | |
| Accessory light Usage life hour | 100000h | ||
| Short circuit protect time | <15ms | ||
| Weight (with battery) | <215 | g | |
| Outline dimension | 77*61*55 | mm | |
| IP Class | IP68 | ||
| EX MARK : | I M1 Ex ia op is I Ma En 60079-35-1 | ||
Description of rechargeable kl4.5lm Cordless cree led mining cap lamp Industry Light
KL4.5LM is a new style of cordless cap lamp with digital device to show the lamp number,time,and battery balance, and remind user to recharge it when the power is not enough.
American CREE 1 watt LED as main light and 6pcs auxiliary ligh;
More than 4000 lux for main light, continuous lighting time is more than 15 hours.
5.2Ah li-ion rechargeable battery.
All in once case with bulletproof PC housing.
CE/ATEX/SABS/TUV/MSHA approved
Advantages of rechargeable kl4.5lm Cordless cree led mining cap lamp Industry Light
Safety: All the housing materials are bulletproof PC, which is very strong to afford heavy impact or high dropping.
MCU controlled protection in electrical short-circuit, automatic power-off on the socket ,
it is explosion proof, waterproof and dustproof, and ATEX Certified for use in explosive atmospheres such as coal mines.
Reliability: Tough housing, optimized design, a solid LED light that uses high efficient IC drivers guarantee the product is durable and strong.
The durable Li-ion battery has an over-charge and over-discharge protection system to protect the battery from over charge or over discharge.
Efficiency: more than 15 hours at full brightness for main light, and more than 60 hours continuous lighting for auxiliary light.
Battery usage lifetime about 1000 cycles
Environmental: The cap lamp is made from environmentally friendly Li-ion battery and other non hazardous materials as per RoHS Directive.
Economy: no requirement to replace bulbs, lifetime of li-ion battery is three times longer than lead-acid cap lamp and saving in maintenance makes the product more compatible in price
Charger input power: AC110-240V / 50-60Hz. Charging time: within 5 hours,
Type of protection: EXia IICT4 (Zone 1 and 2)
Type of Certificate: CE/ATEX, SABS (KL4.5LM), MSHA(pending)
Protection category: IP68
Packing information:
20sets/carton, GW: 20KG, carton size:46*36*36cm
Product show:
|
|
