Product Details:
Payment & Shipping Terms:
|
| Usage: | Mining, Underground Explore; Firefighting; | Lighting Degree: | 12000-15000 Lux |
|---|---|---|---|
| IP Protection: | IP68 | Luminous Flux: | 15000 Lux |
| Light Source: | Cree XPG-2 Led | Feature: | OLED Display Screen |
| High Light: | Cordless Inductive Charging Cap Lamp,IP68 Led Cap Lamp Underground Mining,15000 lux Led Cap Lamp |
||
Newest cree led cordless inductive charging safety miners cap lamp/mining light
patent product, patent No.:ZL2016 2 0503753.9
Product Description
1. Light Source :
1W Cree XP-E2 LED as main light and 2 pieces 3014 SMD LED as auxiliary light 150LM, 15000lux
2. Four light mode: Mian LED high bright, Mian LED auxiliary light, Auxiliary LED for half bright light, Strong light blink.
3. Lighting time: high bright 16h, half bright 26h, auxiliary light 100h, strong light blink in last 1 hour.
4. Reliability:semi-clear frosted PC housing ,impact-resistant, corrosion-resistant and waterproof.
5. Security: Integrated explosion proof design, with Impact construction which can prevent overcharging and over discharging.
6. Energy saving:High efficient semi-conductor tec adapted, can save 70% energy than traditional light bulb under same illuminance.
7. Economical:Long life spam light emitting diode, no need maintenance, no extra cost.
8. Environment friendly:Lithium battery with high performance,memory-less, low self discharge rate.
7. Convenience:small size, light weight,lighten users load and Wears comfortable.
9. Uniqueness:
1) Wireless charging technique avoid the bad contact duo to charging port oxidation. Waterproof can also be improved.
2) OLED screen indicate time,work mode, serial number and actual battery balance
Specification:
| Item | unit | data | |
| LED Source | LED Power | W | 1 |
| Luminous Flux | lux | 15000 | |
| Life Span | h | 100,000 | |
| Battery | Rated Capacity | mAh | 6600 |
| Rated Voltage | V | 3.7 | |
| Charging Time | h | ≤10 | |
| Life Span | Life Circle | 1000 circle | |
| Charger | Input voltage | V | AC100～240 |
| Output Voltage | V | DC 5 | |
| Output Current | A | 1.5 | |
| Lighting hours | h | 13 | |
| Lighting distance | m | 30 | |
| Using Temperature | ℃ | -20℃~ 40℃ | |
| Max Surface Temperature | ℃ | ≤50℃ | |
| Dimension | mm | 90×73×64 | |
| Weight(battery included) | g | 209 | |
| Ex Mark | I M1 Ex ia op is I Ma En 60079-35-1 | ||
| IP Class | IP68 | ||

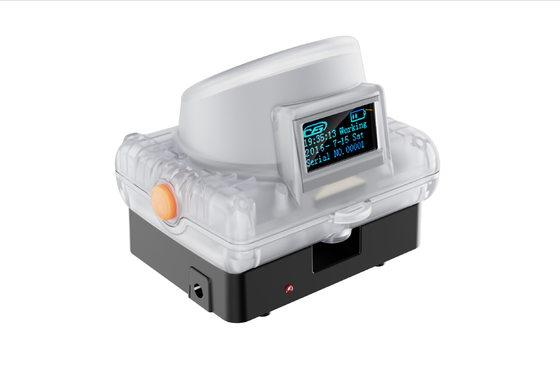

Product show of KL6LM(No wire between charger and lamp):
