MOQ: | 1pc |
Price: | 150-300usd |
Standard Packaging: | 1pc /carton |
Delivery Period: | 20-30days depends on your amount |
Payment Method: | T/T, L/C, Western Union, Paypal |
Supply Capacity: | 5000pc/month |

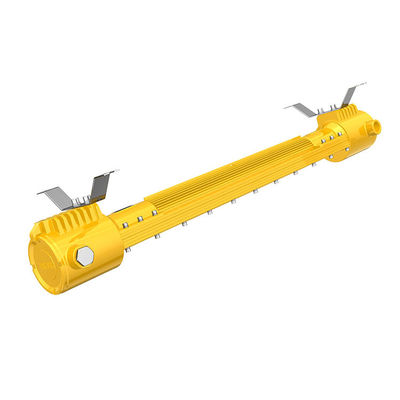

ATEX approved Aluminum housing 40W indoor explosion proof light
DETAILS
With bright color on the surface and polyester coated,corrosion proof, high temperature resis-tant, no paint peeling off
housing
High quality die-casting aluminum housing can resist 2000 kpa pressure
tempered glass
10mm High impact resistance tempered glass to resist more than 7 Joule impacts
blind plug
stainless steel blind plug
cable gland (optional accessories)
Explosion proof aluminum alloy gland and copper gland for option
Double safety protection
Fixed by customized stainless steel bracket
Tied by stainless steel chain
Preventing the light falls off to cause accident
1 Parameter
Items DL618 | Unit Value | |
Light Source |
LED | CREE XT-E/ CREE XM-L |
Luminous Flux | 3200/7500 lumens | |
Color Temperature | 5700-6000K | |
Color Rendering Index | Ra>80 | |
power | 40 watt/ 80 watt | |
Input Voltage | AC 110-240V | |
Housing Material | Die cast aluminum housing with tempered glass | |
Dimension | ø117X151X910 mm | |
Weight | 8 kg | |
Working Temperature | -20°C ~+50°C | |
Beam angle | 180° | |
Corrosion protection Classification | WF2 | |
IP Classification | IP66 | |
EX Mark | Exd II 2G Ex db IIB + H2 T5 Gb / II 2D Ex tb IIIC T100°C Db | |
Total harmonic current | <15% | |
Factor | >0.95 | |
Mounting Angle | 360° |
1) Lighting Distribution Curve: (Unit cd)
2) Lux Distance Curve
2 Product Details:
3 Three Kind of mounting Way:
4 Application Area:
DL618 series LED Explosion Proof Floodlight is applicable for zone I and zone II , or gas area,restricted area or heavy industrial processing equipment area, drilling platform and other coastal or offshore dangerous areas, Such as port, ship, oil, petrochemical, oil depot.
5 Dimension and Package (unit: mm):
1) DL618 dimension: 910*151*117(figure 1)
2) Package size: 960*225*210 (figure 2)
Note:
1. Don' t put the light into the eyes directly to protect from vision loss
2. No breaking, disassembling or throwing the light into fire
3. Prohibit to open the housing when the light is power on
4. None technical persons are not allowed to install and disassembly the light
5. Please pay attention to protect the thread from gouges and scratches when maintenance and please replace the seal ring in time if it is damaged, and tighten the screw to ensure the explosion proof and protective performance
6. Restoring the seal ring to its original place and lid the cavity tightenly after replacing the internal components
7. Not allowed to replace the light' s original components and internal structure so as not to decrease explosion
proof performance
8. Well grounded both internal and external
9. Cable sealing joint should meet following technical requirements (M25* 1.5mm)
Ex Mark: Exd II 2G Ex db IIB + H2 T5 Gb / II 2D Ex tb IIIC T100°C Db
IP grade: IP66
Corrosion proof grade: WF2
After-Sale Service:
All our products warranty period is one-year .
If the products contains a defect or problem beyond human control within the one year warranty period, please send the defective products to us and we will repair
the products for you,free of charge.
If the products passed one year warranty period, we can still repair the defective
products for you, if you will only pay a normal spare parts fee.
If you have any inquiries,suggestions or need some help with our products or information,
don't hesitate to contact us by E-mail or by telephone anytime.
