IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass

IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass

MOQ: 1pc
Price: 150-300usd
Standard Packaging: 1pc /carton
Delivery Period: 20-30days depends on your amount
Payment Method: T/T, L/C, Western Union, Paypal
Supply Capacity: 5000pc/month
Detail Information
Place of Origin
Shezhen China
Brand Name
Golden Future
Certification
ATEX, CE
Model Number
DL618
Light Source:
Cree XM-L
CCT:
5000-7000
CRI:
>80
Light Life:
50,000h
Input Voltage:
AC110-240
Material:
Alluminum Housing
Minimum Order Quantity:
1pc
Price:
150-300usd
Packaging Details:
1pc /carton
Delivery Time:
20-30days depends on your amount
Payment Terms:
T/T, L/C, Western Union, Paypal
Supply Ability:
5000pc/month
High Light:

5000K LED Explosion Proof Fixture

,

40W LED Explosion Proof Fixture

,

IP66 Led Explosion Proof Lamp

Product Description

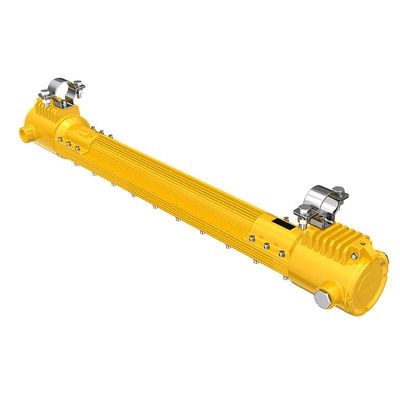

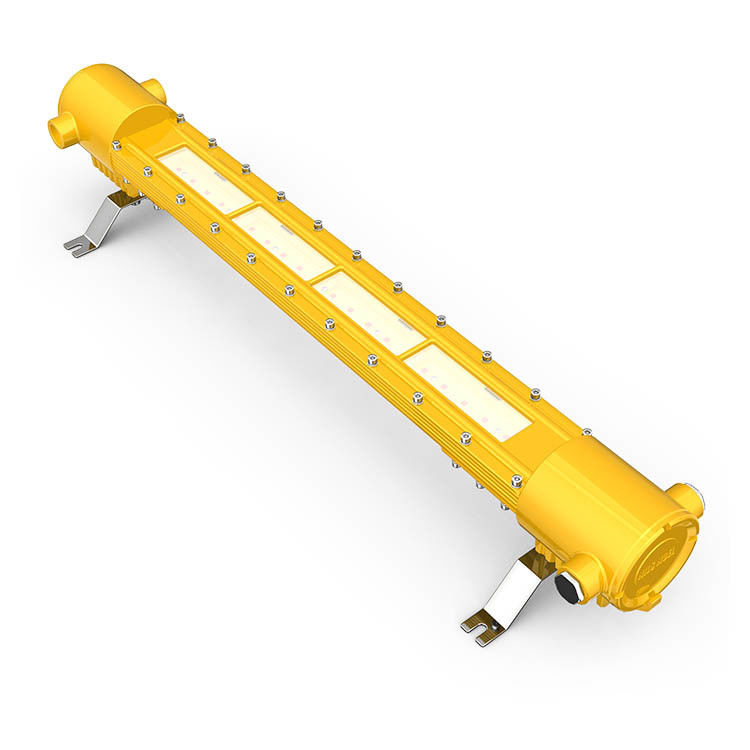

5000K 40W ATEX LED Explosion Proof Light fixture Alluminum housing



1 Parameter



Items DL618 Unit Value

Light

Source

LED CREE XT-E/ CREE XM-L
Luminous Flux 3200/7500 lumens
Color Temperature 5700-6000K
Color Rendering Index Ra>80
power 40 watt/ 80 watt
Input Voltage AC 110-240V
Housing Material Die cast aluminum housing with tempered glass
Dimension ø117X151X910 mm
Weight 8 kg
Working Temperature -20°C ~ 50°C
Beam angle 180°
Corrosion protection Classification WF2
IP Classification IP66
EX Mark Ex d ⅡB+H2 T5 Gb / Ex tD 21 T95℃
Total harmonic current <15%
Factor >0.95
Mounting Angle 360°





Feature:

Patent design combiningoutstandingappearance and excellentheat dissipation

High heat transmit heavy duty copper free housing ADC 12 aluminum

High LED Efficacy: 120 Lm/w

Universal Voltage: AC110-240V

Wide ambient temp range from - 20°C to + 50 °C

Taiwan Meanwell series , UL certified

Sur-face treatment-power painted, salt resistant

Shock and vibration resistant tempered glass, super clear 95% light transmit rate



1) Lighting Distribution Curve: (Unit cd)







IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 0

IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 1





2) Lux Distance Curve





IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 2



2 Product Details:



                   IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 3IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 4

IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 5

3 Three Kind of mounting Way:



IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 6IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 7



IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 8







4 Application Area:



DL618 series LED Explosion Proof Floodlight is applicable for zone I and zone II , or gas area,restricted area or heavy industrial processing equipment area, drilling platform and other coastal or offshore dangerous areas, Such as port, ship, oil, petrochemical, oil depot.





IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 9IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 10







5 Dimension and Package (unit: mm):

1) DL618 dimension: 910*151*117(figure 1)

2) Package size: 960*225*210 (figure 2)

IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 11IP66 5000K 40W LED Explosion Proof Fixture ATEX Tempered Glass 12





Application:

Refineries /Oil Drilling Platforms / Military bases/ manufacturing facilities

Chemical Processing Facility/ Oilfield operations/Food processing plants

Petrochemical Processing Facility /paint spray booths/marine
