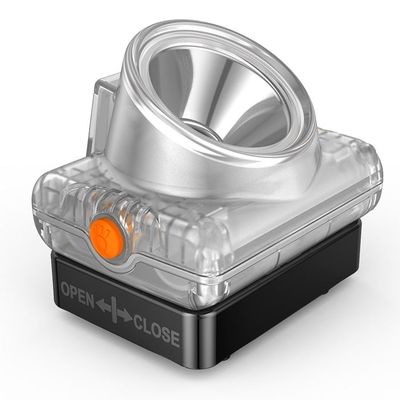

1W 15000Lux Portable Miners Cap Lamp Wireless 6600mAh For Underground

1W 15000Lux Portable Miners Cap Lamp Wireless 6600mAh For Underground
1W 15000Lux Portable Miners Cap Lamp Wireless 6600mAh For Underground

Large Image :  1W 15000Lux Portable Miners Cap Lamp Wireless 6600mAh For Underground

Product Details:
Place of Origin: China
Brand Name: Golden Future Ltd
Certification: CE ATEX
Model Number: KL6LM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: 1-51USD
Delivery Time: 20-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000/month
Detailed Product Description
Power: 1W Illuminance: 15000Lux
High Bright Lasting Time: 13H Mid-light Lasting Time: 26H
Back-up Light Lasting Time: 100H Output Voltage: 5V
Output Current: 1.5A
High Light:

1W Portable Miners Cap Lamp


15000Lux Portable Miners Cap Lamp


6600mAh Underground Mining Lamp

Portable Miners Cap Lamps Wireless High Brightness used for Underground Mining


Attibute value:


Parameters Unit Values


Light source

LED power W 1
Lighting degree Lux 15,000
Lifespan h 100,000



Rated capacity mAh 6600
Rated voltaeg V 3.7
Charging time h ≤8
Lifespan circle 1000



Input voltage V AC100~240
Output voltage V DC 5
Output current A 1.5
Lighting time High bright



Half bright 26
Backup light 100
Lighting distance m 200
Working temperature -20℃~40℃
Highest surface temperature ≤50℃
Dimension mm 90×73×64
Weight (battery included) g 209
Ex-mark I M1 Ex ia op is I Ma En 60079-35-1
IP grade IP68

Features: Lower cost, higher safety.
1. LED : Low energy consumption and super brightness LED
2. Battery : safety lithium ion battery
3. Small in size, light in weight, free maintenance, explosion prevention, waterproof, long life.
4. Lighting time : more than 15h, double light source design
5. Charger AC input : AC100 ~ 240V, 50/60Hz
6. Working temperature : -20~ 40
7. Constant-current driving: maintain the brightness of LED


1 Product Discription:


1 With cree XP-E2 LED the light was has a high brightness.


2 Inductive charger used can avoide the oxidaton of charging port.


3 OLED screen adapted. It has a better shock-resistance feature and can be used under -40℃.


  energy cost is also lower than LCD screen


4 The angle of clip is less than usuall items, which makes the center of gravity more closer to helmet.


  So people who wear it will feel more cozy.


2 charger connection:


1. Refer below 'figure 1' to put the lamp on the charger, and align the line on lamp to the centre line


    on charger.


2. Slide the lamp as the 'close' direction to lock the lamp with charger well, refer 'figure 2'.


1W 15000Lux Portable Miners Cap Lamp Wireless 6600mAh For Underground 0          1W 15000Lux Portable Miners Cap Lamp Wireless 6600mAh For Underground 1



3 operation instruction


1. Press display switch to turn on/ off OLED display.


2. Press lamp switch first time for main light high brightness;


Press lamp switch second time for main light half brightness,


Press lamp switch third time for backup light.


3.When in any time, press and hold the lamp switch for three seconds, the main light will start flashing.


4.Time and serial number setting:


Press both display switch and lamp switch at the same time for three seconds, the lamp turn to time and


serial number setting mode. "Setting" will be shown on the right of the second line of OLED display, and


the digit of "hour" start flashing at the same time,


Then press lamp switch to set the number of “hour”. After that press display switch, the digit of “minute”


start flashing, press lamp switch to set the number for “minute”.


Repeat the above steps to set the numbers of weeks, date and lamp’s serial number.


It will be out of the setting mode if no operations was done within 5 seconds.


1W 15000Lux Portable Miners Cap Lamp Wireless 6600mAh For Underground 2


1 Light source: 1W led  2 Back-up light: 2pcs 3014 SMD led


3 lamp switch  4 display switch.


5 OLED display: to show lamp serial number, time, battery balance and working mode,


6  Mounting clip  7 Induction coil


Technical description:
1.Battery (Lithium ion)
It adopts new styled lithium ion battery which is with over-charging, over-discharging and a short circuit protection function. The cycled lifetime of battery is more than 500 times. It also has 80% rated capacity after using 500 times. It is a newest environmental protection battery.
2. LED
It adopts 1W high-power LED, The life is more than 50000 hours. It adopts two sets of light source


Q1: Can I get some samples?
A1: Yes, Sample order is available for quality check and market test .But you have to pay for it .

Q2: What’s delivery time?
A2: It usually takes about 3-5 working days for small order and 15-25 days for big order .

Q3: What’s your warranty terms?
A3: We offer 1YRS warranty time .

Q4: Do you have the products in stock?
A4: Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .

Q5: How does your factory do the quality control?
A5: Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .


Q6: Can you sell spare parts ?
A6: Yes, Of course .we can sell spare parts to you .


Q7: Can you make the new miner lamps?
A7: Yes. We have a lot of experience to design new wireless and wire miner lamp according to your request . It’s better to design as your wiring diagram .
