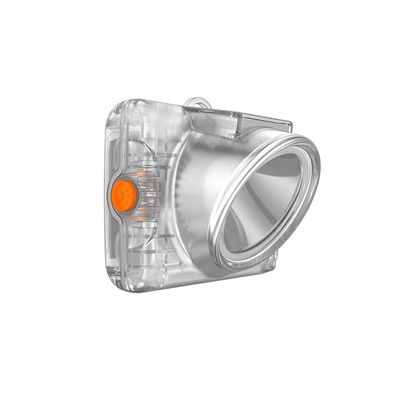

1W Developed led cap lamp underground mining with OLED screen
Attibute value:
| Mian light Power | 1W | back up lighting time | 100H | |
| illuminance | 15000 Lux | battery capacity | 6.6A | |
| input voltage | AC100-240V | battery voltage | 3.7V | |
| output voltage | DC5V | battery charging time | <8h | |
| output Current | 1.5A | Life span | 1000 circle | |
| high bright lighting time | 13H | LED | Cree XP-E2 | |
| mid bright lighting time | 26H | Screen | OLED |
1 Product Discription:
1 With cree XP-E2 LED the light was has a high brightness.
2 Inductive charger used can avoide the oxidaton of charging port.
3 OLED screen adapted. It has a better shock-resistance feature and can be used under -40℃.
energy cost is also lower than LCD screen
4 The angle of clip is less than usuall items, which makes the center of gravity more closer to helmet.
So people who wear it will feel more cozy.
2 charger connection:
1. Refer below 'figure 1' to put the lamp on the charger, and align the line on lamp to the centre line
on charger.
2. Slide the lamp as the 'close' direction to lock the lamp with charger well, refer 'figure 2'.
3 operation instruction
1. Press display switch to turn on/ off OLED display.
2. Press lamp switch first time for main light high brightness;
Press lamp switch second time for main light half brightness,
Press lamp switch third time for backup light.
3.When in any time, press and hold the lamp switch for three seconds, the main light will start flashing.
4.Time and serial number setting:
Press both display switch and lamp switch at the same time for three seconds, the lamp turn to time and
serial number setting mode. "Setting" will be shown on the right of the second line of OLED display, and
the digit of "hour" start flashing at the same time,
Then press lamp switch to set the number of “hour”. After that press display switch, the digit of “minute”
start flashing, press lamp switch to set the number for “minute”.
Repeat the above steps to set the numbers of weeks, date and lamp’s serial number.
It will be out of the setting mode if no operations was done within 5 seconds.
1 Light source: 1W led 2 Back-up light: 2pcs 3014 SMD led
3 lamp switch 4 display switch.
5 OLED display: to show lamp serial number, time, battery balance and working mode,
6 Mounting clip 7 Induction coil
Usage
It is suitable for mineral industry, tunnel projects, construction and maintenance for power,
communication, highway, railway at night, rescuing use.
FAQ
Q1: Can I get some samples?
A1: Yes, Sample order is available for quality check and market test .But you have to pay for it .
Q2: What’s delivery time?
A2: It usually takes about 3-5 working days for small order and 15-25 days for big order .
Q3: What’s your payment terms?
A3: We usually accept all kinds of payment terms .Such as T/T, Western Union,Cash.
Q4: What’s your warranty terms?
A4: We offer 1YRS warranty time .
Q5: Do you have the products in stock?
A5: Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
Q6: Can I mix different power in one container?
A6: Yes ,Different models can be mixed up in one container ,even one order .
|
|
