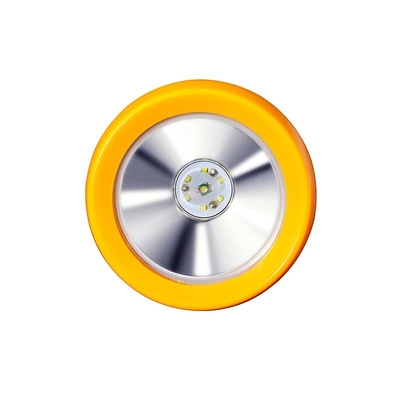

LED Miner Head Lamp 20000lux IP68 Rechargeable Mining Light

LED Miner Head Lamp 20000lux IP68 Rechargeable Mining Light

MOQ: 2
Price: $36-45
Detail Information
Place of Origin
Guangdong, China
Brand Name
Golden Future
Certification
CE,RoHS
Model Number
G5
Color Temperature:
6000K
Input Voltage:
AC100-240V
Luminous Efficiency:
140 Lm/w
Color Rendering Index:
80 Ra
Lifespan:
100000 Hours
Product Weight:
0.55 Kg
Battery Type:
Lithium Ion
IP Rating:
IP68
Lamp Material:
PC
LED Type:
XPE
Brightness:
20000 Lux
Battery Capacity:
7.8Ah
Working Time:
>16 Hours
Charging Time:
8~10 Hours
Output Voltage:
DC4.2V
Minimum Order Quantity:
2
Price:
$36-45
Highlight:

LED miner head lamp rechargeable

,

mining light 20000lux IP68

,

LED mining cap lamp with warranty

Product Description
LED Miner Head Lamp Mining Lighting Underground Cap Lamp
Product Specifications
Attribute Value
Color Temperature (CCT) 6000K (Daylight Alert)
Input Voltage AC100-240V
Luminous Efficiency 140 lm/w
Color Rendering Index (Ra) 80
Lifespan 100,000 hours
Weight 0.55 kg
Power Source Rechargeable Lithium Ion Battery (7.8Ah)
IP Rating IP68
Material PC Housing
Brightness 20,000 lux
Working Time >16 hours
Warranty 1-Year
LED Miner Head Lamp 20000lux IP68 Rechargeable Mining Light 0 LED Miner Head Lamp 20000lux IP68 Rechargeable Mining Light 0
Product Description

The LED Miner Head Lamp Mining Lighting Underground Cap Lamp G5 is the brightest corded safety mining light with 20,000 lux output. This safety miner lamp features low power indication to alert users when recharging is needed.

Key features include:

  • 7800mAh rechargeable Li-ion battery (LG brand)
  • Advanced LED technology with bulletproof PC housing
  • Toughened glass lens for durability
  • Three light modes: main LED, backup LED, and flash
  • Low power indication system
Technical Specifications
Component Specification Unit
Light Source LED Power 1 W
Lighting Degree 20,000 Lux
Lifetime 100,000 Hours
Li-ion Battery Capacity 7,800 mAh
Battery Voltage 3.7 V
Working Time >15 Hours
Charging Time 8-10 Hours
Battery Life 1,000 Cycles
Charger Input AC100-240 V
Charger Output DC4.2 V
Weight (with battery) 550 g
IP Class IP68
Ex-Mark IM1 Ex ia I Ma
LED Miner Head Lamp 20000lux IP68 Rechargeable Mining Light 2 LED Miner Head Lamp 20000lux IP68 Rechargeable Mining Light 3 LED Miner Head Lamp 20000lux IP68 Rechargeable Mining Light 4
Product Advantages
Superior Brightness

Features American CREE XPG LED technology delivering over 150 lumens output with 20,000 lux illumination at 1 meter distance. Provides more than 15 hours continuous lighting when fully charged.

Advanced Protection Systems

Sealed battery case with short-circuit protection, anti-static housing making it explosion-proof, waterproof, and dust-proof. Includes over-charge and over-discharge protection to extend battery life.

Ergonomic Design

Compact, lightweight design with ergonomic fit for comfort during extended use. Maintenance-free operation with simple charging process.

Environmental Compliance

Manufactured with environmentally friendly Li-ion battery and non-hazardous materials. Complies with ROHS Directive standards.

LED Miner Head Lamp 20000lux IP68 Rechargeable Mining Light 5
Packing & Delivery

Standard packaging includes color box, 20 pieces per carton. Carton dimensions: 46×36×36 cm, gross weight: 18.5 kg per carton.

Frequently Asked Questions
What is the lead time?

Samples require 7-10 days, mass production takes 20-25 days.

What is your minimum order quantity?

MOQ for samples is 1 piece (EXW), for production orders is 200 pieces (FOB).

What shipping methods do you use?

We ship via DHL, UPS, FedEx or TNT, typically arriving in 5-7 days.

What payment methods do you accept?

We accept TT, PayPal, and Western Union payments.

Do you offer product warranty?

Yes, we provide a 1-year guarantee for all products.

Do you accept OEM/ODM orders?

Yes, we support custom OEM/ODM requirements.
