| MOQ: | 1 pc |
| Price: | USD35-USD50 |
| Standard Packaging: | 20pc per carton, each one in a white box |
| Delivery Period: | 20-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 5000pc/ month |

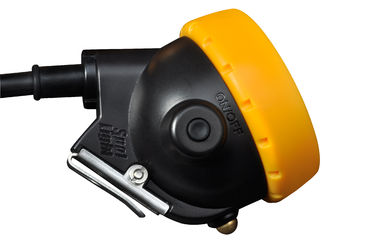

6.6Ah high lumens Industrial Lighting Fixture , rechargeable mining led lights explosion proof
1 Product Details
| Name | Unit | value | |
| light source | LED Power | W | 1 |
| Lighting degree | lux | 20000 | |
| Luminous flux | Lm | 150 | |
| Life time | hour | 50000 | |
| Battery | capacity | Ah | 6.6 |
| voltage | V | 4.4 | |
| charging time | Hour | ≤5 | |
| life time | cycle | 1000 | |
| charger | Input voltage | V | AC110~240 |
|
output voltage |
V | DC3 | |
| output current | A | 1.3 | |
| continuous lighting time | Hour | ≥15 | |
| lighting range | m | >40 | |
| working temperature | ℃ | -20~+40 | |
| Max surface temperature | ℃ | 40 | |
| outline dimension | mm | 97*97*40 | |
| weight (with battery) | g | 0.55KG | |
| EX mark | Ex ia IIB T4 Gb | ||
| IP grade | IP67 | ||
Safety: All-in-one case with PC material make very good fixture of explosion-proof, short-circuit proof, automatic power off , 100,000 hours LED's life time
Reliability: The high strength case, bulletproof glass lens, optimized structure design and MCU control
make the product more reliable.
Portable: Just a head lamp, small in size, light in weight, simple charging, easy usage.
Efficiency: more than 15 hours working time, max 20000 lux degree high light, battery usage lifetime
1000 cycles.
Environmental: Li-ion battery is free of maintenance, and the material of li-ion is environmental, use 1
watt high power LED as main light, and 6 pieces 5mm backup LED to save power.
A Head lamp B battery case C Flexible cable
A1 Headlamp cover A2 Stalinite lens A3 Reflector A4 Mian LED light
A5 Auxiliary light
A6 Head light shell A7 Button switch A8 Stainless steel clip
A9 Contact of anode A10 Cathode touch
B1 Battery Box B2 Belt buckle B3 Locking Nut
2 Testing Process
1 Integrating sphere: Used for testing iluminance flux, lighting degree, CRI
2 Battery test machine: Used for battery capacity and inner resistance testing.
3 Plug test machine: To test the life span of plug by drug it repeatedly
4 Button switch test machine: To test the life span of button switch by pushing it repeatedly
5 High temp test machine: To test the highest using temperature of lights by put it in setted temperature.
6 Low temp test machine: To test the lowest using temperature of light
7 Spray test machine: To Test the IP grade by controlling the angle and amount of water sprayed.
8 Impact resistance testing: Iron hammer dropping from 2m high, to test the firmness of housing
9 Outer package shaking resistance testing: To test the fimness of outer package by imitating the transportation environment.
|
|
