| MOQ: | 1 Piece |
| Price: | USD46 |
| Delivery Period: | 20-25 days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 5000/month |

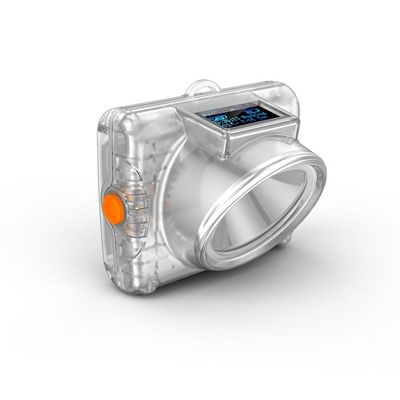

Inductive charging led miners cap lamp , mining cap lights frosted PC housing
Attibute value:
| Parameters | Unit | Values | |
|
Light source |
LED power | W | 1 |
| Lighting degree | Lux | 15,000 | |
| Lifespan | h | 100,000 | |
|
Battery |
Rated capacity | mAh | 6600 |
| Rated voltaeg | V | 3.7 | |
| Charging time | h | ≤8 | |
| Lifespan | circle | 1000 | |
|
Charger |
Input voltage | V | AC100～240 |
| Output voltage | V | DC 5 | |
| Output current | A | 1.5 | |
| Lighting time | High bright |
h |
13 |
| Half bright | 26 | ||
| Backup light | 100 | ||
| Lighting distance | m | 200 | |
| Working temperature | ℃ | -20℃～40℃ | |
| Highest surface temperature | ℃ | ≤50℃ | |
| Dimension | mm | 90×73×64 | |
| Weight (battery included) | g | 209 | |
| Ex-mark | ExiaⅡCT6 Gb | ||
| IP grade | IP66 | ||
1 Product Discription:
1 With cree XP-E2 LED the light was has a high brightness.
2 Inductive charger used can avoide the oxidaton of charging port.
3 OLED screen adapted. It has a better shock-resistance feature and can be used under -40℃.
energy cost is also lower than LCD screen
4 The angle of clip is less than usuall items, which makes the center of gravity more closer to helmet.
So people who wear it will feel more cozy.
2 charger connection:
1. Refer below 'figure 1' to put the lamp on the charger, and align the line on lamp to the centre line
on charger.
2. Slide the lamp as the 'close' direction to lock the lamp with charger well, refer 'figure 2'.
3 operation instruction
1. Press display switch to turn on/ off OLED display.
2. Press lamp switch first time for main light high brightness;
Press lamp switch second time for main light half brightness,
Press lamp switch third time for backup light.
3.When in any time, press and hold the lamp switch for three seconds, the main light will start flashing.
4.Time and serial number setting:
Press both display switch and lamp switch at the same time for three seconds, the lamp turn to time and
serial number setting mode. "Setting" will be shown on the right of the second line of OLED display, and
the digit of "hour" start flashing at the same time,
Then press lamp switch to set the number of “hour”. After that press display switch, the digit of “minute”
start flashing, press lamp switch to set the number for “minute”.
Repeat the above steps to set the numbers of weeks, date and lamp’s serial number.
It will be out of the setting mode if no operations was done within 5 seconds.
1 Light source: 1W led 2 Back-up light: 2pcs 3014 SMD led
3 lamp switch 4 display switch.
5 OLED display: to show lamp serial number, time, battery balance and working mode,
6 Mounting clip 7 Induction coil
|
|
