New Wireless Underground Miner Cap Lamp Cordless Miner Flashlight Mining Light

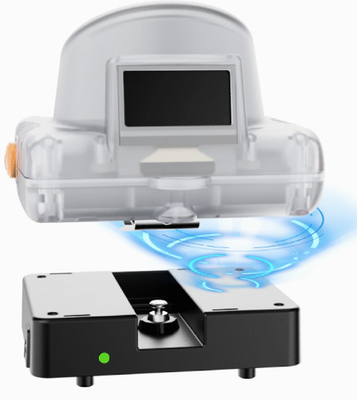

KL6LM all-in-one wireless inductive charging cap lamp is designed to be widely used in mine, construction site, emergency rescue, and other outdoor activities. Compared with the previous cordless digital cap lamp, KL6LM has been advanced in many aspects.Wireless inductive charging technology, showing more information with OLED display, improved 15000 lux, as well as various lighting steps, all of these innovative improvements provide safety assurance for the people wearing this lamp
technical parameters:
Features |
Value |
Unit |
|
Light source |
LED Power |
1 |
W |
Luminous flux |
>140 |
Lm |
|
Life time |
>50,000 |
hour |
|
Li-ion battery
|
Rated capability |
6.6 |
Ah |
Rated voltage |
3.7 |
V |
|
Continuous working time |
>15 |
hour |
|
Charging time |
<8 |
hour |
|
Life time |
1000 |
circle |
|
Charing voltage and current |
5V@1.5A |
||
lamp lighting degree (distance 1 meter) |
>12000 |
Lux |
|
Accessory light Usage life hour |
100000h |
||
Short circuit protect time |
<15ms |
||
Weight (with battery) |
<210 |
g |
|
Outline dimension |
90*73*64 |
mm |
|
IP Class |
IP68 |
photos show:
Product Advantages
Safety: Over-charging protection , over-discharging protection, protection in electrical short-circuit, automatic power-off on the socket , 100,000 hours LED’s Lifetime
Portability: Just a head lamp , Small in size , light in weight (only 210g for whole product), wireless magnetic inductive charging, easy usage
Efficiency: more than 15hours at full brightness.more than 26hours at half brightness, over 100hours at back up led brightness.Over 15000lux at starting time, and more than 10000lux after 11 hours continuous lighting.Battery usage lifetime about 1000 cycles.
With OLED digital device to show LOGO , lamp number, time, and battery balance, show charging status, and can remind the user to recharge it when the power is not enough for one hour lighting.
Environmental: Li-ion battery is free for maintenance, and the material of li-ion is environmental, use 1Watt high power LED as the main light, and 2pcs backup LED’s to save power
Economy: three times longer than lead and acid cap lamp and saving in maintenance makes the product more compatible in price
Charger input power: AC100-240V / 50-60Hz. Charging time: 5hours, continuous discharging time: more than 15hours at full brightness.more than 26hours at half brightness, over 100hours at back up led brightness
Type of protection: I M1 Ex ia I Ma
Protection category: IP68
Packing information
20sets/carton, GW: 10.5KG, carton size:46*36*36cm
Our service:
We can provide good quality, quick delivery, AQ discount for all customers.
1. For all your inquires, we will reply you in detail within 24 hours.
2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.
3. We have sales who have engage in LED many years to provide custom-made the sales solution.
4. We have engineers who has the experience of projects to solve the problems of technical.
5. We have very experienced R&D and we have strong ability to do ODM projects.
Looking forward to cooperating with you.
FAQ:
Q: 1. Could you accept a sample order?
A: Yes, Welcome to test a sample
Q: 2. What is the lead time?
A: 7-10days for sample order. 25-30 days for bulk order
Q: 3. What is your MOQ ?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.
Q: 4. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 5.What is your payment method?
A: TT, Paypal, Western Union.
Q: 7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 8. Do you accept OEM/ODM?
A: Yes, it’s available.
