IP67 30 Watt 6500K LED Industrial Lighting Fixture Explosion Proof , 120 Degree

IP67 30 Watt 6500K LED Industrial Lighting Fixture Explosion Proof , 120 Degree
IP67 30 Watt 6500K LED Industrial Lighting Fixture Explosion Proof , 120 Degree IP67 30 Watt 6500K LED Industrial Lighting Fixture Explosion Proof , 120 Degree IP67 30 Watt 6500K LED Industrial Lighting Fixture Explosion Proof , 120 Degree

Large Image :  IP67 30 Watt 6500K LED Industrial Lighting Fixture Explosion Proof , 120 Degree

Product Details:

Place of Origin: Shenzhen China
Brand Name: Goldenfuture
Certification: ATEX, CE, FCC,CSA
Model Number: DMT-30

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: standard Packagingor customer's requirement
Delivery Time: 20 days
Payment Terms: T/T in advance, or 30% deposit, balance T/T based on copy of B/L for sea shipment
Supply Ability: 20000 lamps for industry lamps, and 100,000 lamps for commercial lightings
Detailed Product Description
Product Name: Industrial Lighting Fixture Power: 30 Watt
Voltage: AC85-265V, Or DC24-36V LED Brand: CREE
CCT: 6500K Lumens: 3000 Lumens
High Light:

led gas station canopy lights

,

gas station canopy led lights

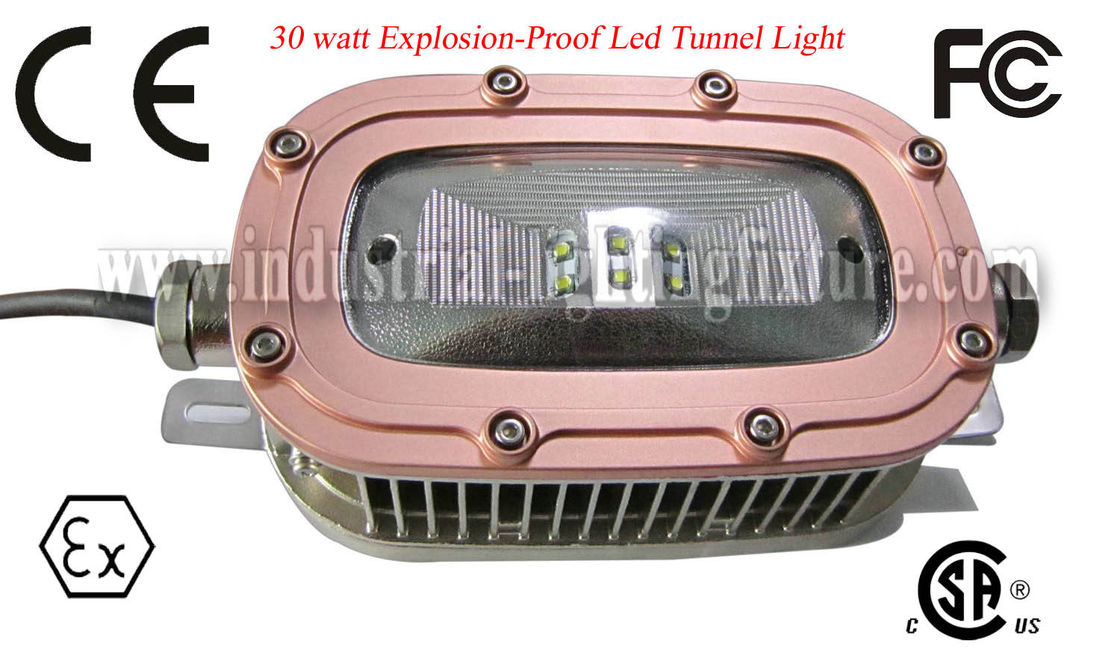

30 watt Explosion-Proof Led Tunnel Light/Flood Light/Area Light for Underground Passage

The DMT-30 LED mining safety tunnel light is specially designed for tunnel illumination of underground mines, industry plant and offshore oil plant,  which has potential explosive atmospheres or combustible dust, sulfide or salt in the air.





Advantages:


    Absolutely corrosion proof, explosion proof, it is a very good item for coal mine, metal mine and offshore oil plant;
    Reducing energy by 7 times, the energy you saved for one year using is enough to buy the lamp.
    Very long lifetime, and no maintenance cost.




Housing material:


    stainless steel with nickel plated, absolutely corrosion proof
    bulletproof PC lens with antistatic oil painted, which can support more than 20J impact, no need metal mesh as normal light




Light source:


    6pcs American CREE XM LED, total power 30 watt,
    initial output lumens is 3000 lumens.
    Life time: more than 50,000 hours
    CRI: 78, color temperature: 6500K

 Patented reflectors enable the lamp to illuminate the underground passage uniformly,  160 degree beam angle in longituginal plane, and 120 degree in transverse plane




Electrical:


   Input: AC85-265V, 50/60HZ, or DC24-36V, no critical to voltage drops.
   Total power consumption is only 33watt, .reducing energy consumption by 7 times.

Long life span, and no maintenance cost, absolutely corrosion proof, explosion proof, dust proof and water proof.




Rated:


  water proof: IP67
  Corrosion proof: WF2
  EXD 1 for MI,
  EXD IIB T5 for MII, Zone 1 and 2, Zone 21 and 22

Approval:
  ATEX   (In process)
  CSA     (in process)
  FM       (in process)

Specifications:



Total power consumption:

33watt

Input voltage:

AC85-265V, or DC24-36V

Power factor (λ):

>0.9

High power LED brand:

CREE

CRI:

78

CCT:

6500K

Output lumens:

3000 lumens

Corrosion proof grade:

WF2

IP Classification:

IP67

Explosion protection classification:

EXD I, EXD IIB T5

Equipment category:

MI, MII

Area classifications (gases):

Zone 1 and 2

Gas Group:

IIA, IIB,

Area classification (dusts):

Zone 21 and 22

Temperature classification:

T5

Dimension:

24 * 12 * 8.9cm

weight:

5kg

IP67 30 Watt 6500K LED Industrial Lighting Fixture Explosion Proof , 120 Degree 0







IP67 30 Watt 6500K LED Industrial Lighting Fixture Explosion Proof , 120 Degree 1IP67 30 Watt 6500K LED Industrial Lighting Fixture Explosion Proof , 120 Degree 2IP67 30 Watt 6500K LED Industrial Lighting Fixture Explosion Proof , 120 Degree 3
