| MOQ: | negotiation |
| Price: | negotiation |
| Standard Packaging: | standard Packagingor customer's requirement |
| Delivery Period: | 20 days |
| Payment Method: | T/T in advance, or 30% deposit, balance T/T based on copy of B/L for sea shipment |
| Supply Capacity: | 20000 lamps for industry lamps, and 100,000 lamps for commercial lightings |

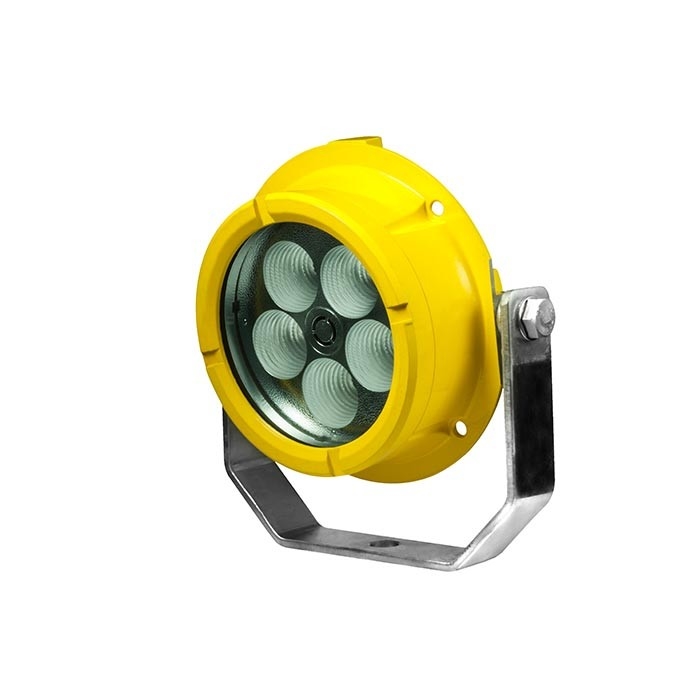

Nice High Power Led 30W with Arms IP67 DL601F Dock Light Explosion Proof Lighting Warehouse Lighting
Specification of explosion proof safety led loading dock light :
Housing Construction
Low-copper content cast aluminum
Safety yellow powder coat
Light Source
60 ° or 120° beam angle
Cree LED outdoor floodlight
50,000 hours average rated life
2000 lumens
20W energy saving outdoor floodlight fixtures is120° beam angle
Lens of the DL601F 20W outdoor explosion proof lighting
Heat-treated glass (GL)
Impact-resistant clear polycarbonate (CP)
Impact-resistant diffuse polycarbonate (OP)
Specifications:
| Items | Unit | Value | |
| Luminary | LED Power | W | 20 |
| Luminous Flux | lumens | 2000 | |
| Life span | H | 100, 000 | |
| Rated Voltage | V | AC 110~240 | |
| DC 36 | |||
| DC 24 | |||
| Dimension | cm | 16×8.5 | |
| Weight | kg | 2.26 | |
| Connecting wire | mm | 6~8 | |
| Inlet’s thread | G3/4 | ||
| Corrosion protection Classification | WF2 | ||
| Insulation Classification | I | ||
| IP Classification | Ip67 | ||
| EX Mark | ExdⅡCT6 | ||
| Certificate of Conformity Serial No. | CNEx07.1999 | ||
| Housing | Low-copper content aluminum housing | ||
Application of explosion proof safety led loading dock light/flame proof lamp:
dock,oil plant,offshore oil plant,chemical plant,flammable and explosion zone II ,restriced distric and heavy industry machining equipment distric,oil store and gas station,drilling rig area and the other dangerous seacoast.
Product show:
|
|
